Building and Using a Flow Cell Biofilm Reactor

Student Version (go to Instructor Version)

Introduction:

A flow cell is a device that permits the microscopic observation of the initiation and growth of a biofilm in real time.  It is constructed simply from a piece of square capillary tubing mounted on a base.  The flow cell is placed on the stage of the microscope and a source of microorganisms and nutrient is permitted to pass through the tube.  Observation over time will permit you to follow the various stages of biofilm development (See Figure 1).

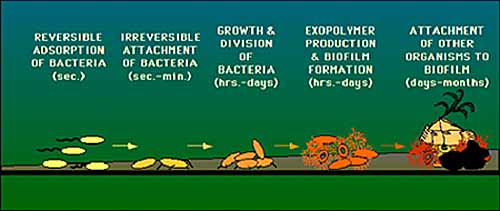

Biofilm development
Permissions

Permission pending; ASM Microbe Library

Figure 1.  Illustration of the stages of biofilm development.

In this exercise you will construct one type of flow cell and use it to observe biofilms forming in real time under your microscope. You will observe attachment, growth and division of the cells of the biofilm, the production of extracellular polymeric substances (EPS), and possibly the aggregation of other materials to the growing biofilm. You should carefully examine the biofilm to observe its structure and distribution, the presence of any open water channels in the mature biofilm, the presence of towers and “mushroom-shaped” microcolonies, streamers and any evidence of biofilm viscoelasticity.

Instructions:

There are four components of a basic flow cell reactor system these are:

  1. the nutrient supply
  2. an access port
  3. the flow cell
  4. the waste disposal container

Your instructor will advise you on the source of microorganisms you will use and the necessary nutrients. She will also indicate how you will dispose of waste materials if necessary. In this section you will construct a flow cell and an access port by which you can add materials to the system while it is in operation without dismantling the flow cell.

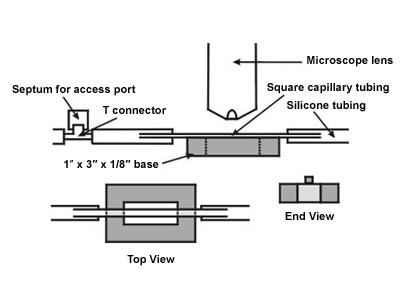

Figure 2. Diagram of a flow cell
Permissions

Staff, Center for Biofilm Engineering, Montana State University, Bozeman

Figure 2.  Diagram of a flow cell

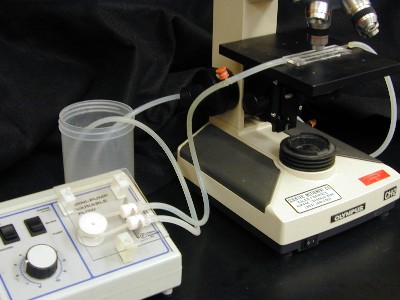

Figure 3. A flow cell reactor system
Permissions

J. Lennox, Penn State Altoona

Figure 3.  A flow cell reactor system

Supplies Needed:

For the Flow Cell

According to your teacher’s instruction, use or construct one of these bases.

Quantity
Description
1 1 X 3 X 1/8 inch acrylic base OR;
7" 1/4 x 1/4 inch clear acrylic rod stock OR;
1 2.5-3" metal washer
OR Use

1 4" section of square capillary tubing, 2mm I.D.
1 super glue

For the Access Port

Quantity
Description
1 T-barbed fitting connector
1 rubber sleeve stopper
1 polycarbonate tensioning tool
1 4" strap or cable tie

For General Assembly and Operation

Quantity
Description
1 silicone tubing, cut into 3 pieces
1 Peristaltic Pump Fisherbrand, Variable Flow
As Necessary Gloves

The Flow Cell

The flow cell consists of a base made of plastic or metal and a square glass tube of optical quality glass through which microorganisms and nutrient will be pumped. This device can be placed on the stage of your microscope so that you can observe the development of a biofilm in real time (see Figure 4). For this flow cell you will be using 2 mm inside diameter tubing. This is fairly b and not easily broken. Its wall diameter is thicker than the working distance of a typical oil immersion lens, so in observing the biofilm we will use only the 10 X or High Dry lens.

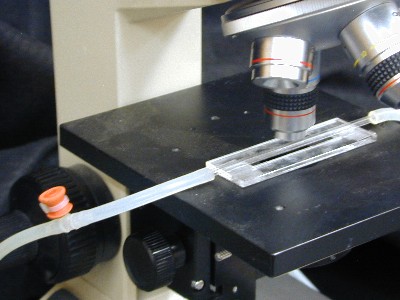

Figure 4. A close up view of a flow cell and access port placed on a microscope stage
Permissions

J. Lennox, Penn State Altoona

Figure 4.  A close up view of a flow cell and access port placed on a microscope stage.

Your teacher will instruct you which type of flow cell base you will be using or building (see Figure 5a, b and c).

Type a:

Select one of the prefabricated acrylic bases and one 4” piece of square capillary tubing. Carefully apply a small amount of Super Glue to each end of the base and place the tube on it so that the tube runs the length of the base with its center aligned with the center of the slot. Permit the Super Glue to set.

Caution:   Cyano-acrylic cements like Super Glue and can bind fingers and skin in seconds. Use great care not to get any of the glue on your hands.

First Aid:   Should binding to fingers or skin occur, immerse the affected area in warm soapy water and gently peel or roll the skin back and forth until the affected parts separate. Repeated washes in warm soapy water will permit you to peel off adhering super glue. In the event of cyanoacrylic contact with the eyes, seek medical assistance immediately.

Type b:

If preformed bases are not available you will have to make one. Using the fine toothed hobby knife, carefully cut two 3” pieces of the 1/4 “ thick acrylic rod stock. Also cut 2 x 1/2 inch pieces of the rod stock. Now assemble the four pieces into a 1” x 3” rectangular frame, and fasten thee parts together with Super Glue. Permit the frame to harden (Figure 5b).

Caution:  Wear goggles while cutting the tubing, as it can shatter.  Use all appropriate precautions when using cyano-acrylic cement.  It binds to fingers as well as to plastic and glass.

Secure the 4” piece of square glass capillary tubing to the frame by applying some of the glue at each end of the frame and placing the tubing into the cement.   (See the caution about cyano-acrylic cement above.)

Type c:

A third and very simple base can be made from a large metal washer (2.5 inches in diameter). The square tubing is simply glued to the top of the washer through its diameter (See Figure 5c).

Figure 5. Three types of bases for flow cell construction
Permissions

D. Williams, Center for Biofilm Engineering, Montana State University, Bozeman

Figure 5.  Three types of bases for flow cell construction.

The Access Port

It is often desirable to be able to introduce or remove materials into or out of the system without compromising the sterility of the flow cell. An access port placed upstream and/or downstream from the flow cell will meet this need.

Place the narrow end of a rubber sleeve stopper onto the stem portion of a plastic T-connector (Figure 6).

Once this is inserted into the line between the nutrient source and the flow cell, materials such as nutrients, other organisms, antimicrobics and dyes can be inserted into the system by clamping off the medium flow (up stream from the access port) and injecting the desired material through the access port and into the T-connector. It is recommended that the septum be disinfected prior to and after injecting any materials. Clamping above the port ensures that the material flows in the direction of the flow cell.

Note: Ask your instructor about the proper disposal of needles and sharpes.

Note:  For a more secure fit, the cup of the sleeve stopper can be inverted back over the stem of the T-connector and this can be held in place with a 4” cable tie tightened with a tensioning tool. When tightening the strap around the base hold the sleeve tight to the T-connector so that the cable tie wraps around the stem below the barb.

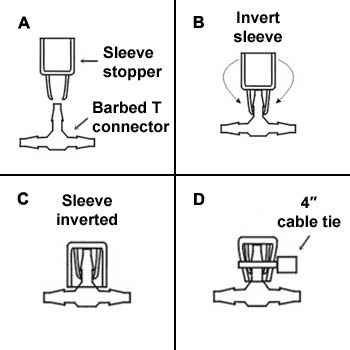

Figure 6. Diagram of constructing the access port
Permissions

Staff, Center for Biofilm Engineering, Montana State University, Bozeman

Figure 6.  Diagram of constructing the access port.

Assembly and Use

If desired, all of the components of the apparatus may be autoclaved except the flow cell itself.  The flow cell can be disinfected with alcohol.

It is a good idea to place the flow cell in a pan that can hold the entire volume of the culture or medium supply in the event of a leakage accident.

The cell may be set up in a recirculating or flow through pattern. Your teacher will instruct you which system to use.

A recirculating system is the easier system to set up. In this pattern a plastic tube from a culture (e.g. a hay infusion) is passed through the peristaltic pump. The access port is attached to the outflow from the pump and then to the flow cell. The effluent from the flow cell is directed back into the culture. In this pattern no waste disposal container is necessary. An aquarium, a known culture, a pond water sample, or a sample from any natural water supply may be substituted for the hay infusion. Each will produce its unique biofilm in the cell.

A flow through system requires a source of inoculum, a medium supply and a waste container. The sterile access port and flow cell are connected to the medium supply and the medium flow is adjusted to the desired flow rate by adjustment of the peristaltic pump. After the system is filled with medium, the pump is turned off and the tube between the pump and the access port is clamped off. The culture of interest is injected into the access port and the system is allowed to incubate for a period of time (commonly over night), so the attachment of cells to the flow cell will occur. At this point the clamp is removed and the pump started so that the newly attached cells will receive nutrient.

If desired, all of the components of the apparatus may be autoclaved except the flow cell itself. The flow cell can be disinfected with alcohol.

Note:  Biofilms typically prosper at low nutrient concentrations, so 1/10 nutrient broth, TSB or LB broth is likely to produce a better effect than full strength medium.

Follow-up Activities

  1. Place two flow cells in tandem each on its own microscope. Feed the two flow cells from a heavily overgrown aquarium with lots of algae and cyanobacteria. Cover one flow cell with aluminum foil to exclude light and illuminate the other. The illuminated flow cell should exhibit autotrophic organisms while the dark one should be exclusively heterotrophic.
  2. Once a biofilm is established, introduce a disinfectant, detergent or antibiotic through the access port and observe the results.
  3. Introduce a stain like carbol fuchsin or methylene blue through the access port and observe the result. Note this may damage the biofilm.
  4. Measure the length of “streamers” with an ocular micrometer and then increase the flow rate with the pump and measure the length of the streamer again. Plot streamer length as a function of flow rate. Now slow the flow rate while measuring “streamer” length. What happens to the length of the streamer as flow rate is increased and decreased? This simple procedure exhibits the viscoelasticity of biofilm extra polymeric substances (EPS).

References:

Detachment, surface migration, and other dynamic behavior in bacterial biofilms revealed by digital time-lapse imaging
Stoodley P, Hall-Stoodley L, Lappin-Scott HM
Methods in Enzymology, (2001) 337:306-319

Microscopy flowcells:   Perfusion chambers for real-time study of biofilms
Palmer RJ Jr
Methods in Enzymology, (1999) 310:160-166

Acknowledgments:

This exercise was suggested by Dr. Paul Stoodley
